Low Frequency 125khz Passive RFID Readeres

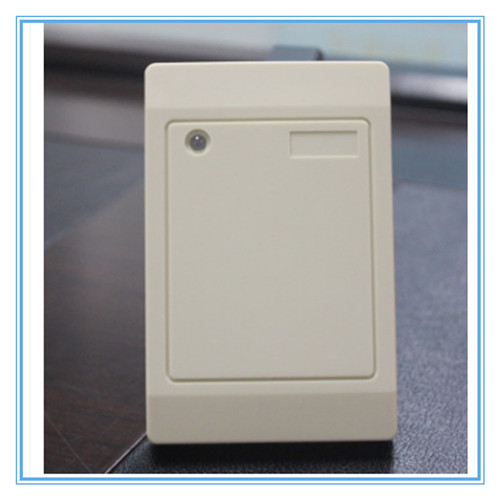

On wall EM card reader (EM4100/EM4102 reader Read/Only type and 13.56MHz 14443A), connect to the controller in access control system. Completely waterproof for the outdoor environment.Features
- Latest compact size
- No batteries
- Water resistant
- Easy to install, low profile and designed for indoor or outdoor application With CPU watch-log function to prevent malfunction
Description
It supports 125KHz /13.56MHz smart card type and various Wiegand format (26/34) output,(RS232, RS485 optional)
It uses advanced RF receiver circuit design and embedded micro-controller, combined with efficient decoding algorithms. It has received high sensitivity, current, single DC power supply, low price, high-performance characteristics. Dust, moisture, the fully sealed design allows users to install the outdoor and other harsh conditions, no mechanical wear and durability.
Primary Applications:
- Barrier gate
- Ladder control
- Parking lot
- Access control
- PC terminal
Specification
| Item | Parameters |
|---|---|
| Frequency | 125KHz |
| Operating Voltage | DC 9V-16V |
| Consumed Current | 0-100mA |
| Support cards | Mifare one( S50, S70 etc.) |
| Read Range | 0mm-100mm |
| (related to the card or the environment) | |
| reader interval | ＜0.5S |
| Format | Wiegand 26/Wiegand 34 |
| (Setting by yourself) | |
| Distance of transmission | WG26/34≥100M |
| Service Temperature | -25℃ ~ +75℃ |
| Size | 114mm×76mm×16mm |
| Weight | About 190G |
| Lead Length | 180mm±5mm |
| Material | ABS & Resin adhesive |
| （it’s waterproof） | |
| Status Indication | 1PC LED (Red means standby, Green means reader success) |
