How Do RFID Readers Work: A Comprehensive Guide

RFID readers work by sending radio signals through an antenna, receiving responses from compatible tags, and decoding those responses into data. With passive RFID, the reader also supplies the energy that powers the tag. Software then connects the tag’s identifier to an item, asset, or credential and determines what action to take.

The exchange depends on the RFID technology. Typical LF and HF systems use magnetic coupling; passive UHF systems usually use radiated radio energy and backscatter. This distinction explains why tapping an access card and scanning tagged cartons across a doorway require different hardware.

The Core Components of an RFID System

An RFID system combines four functional parts:

• Tag: A chip and antenna attached to or embedded in an object. The chip stores an identifier and may hold additional data.
• Reader: Electronics that generate radio signals, issue commands, receive responses, and decode tag data. A reader is also called an interrogator or, informally, an RFID scanner.
• Reader antenna: Transfers energy and signals between the reader and tags. It may be built into the reader or connected externally.
• Host software: Receives read events, connects identifiers to records, and applies business rules.

Inside the reader, a transmitter generates the outgoing signal, a receiver extracts the tag’s much weaker response, and a controller manages communication timing and data processing. Depending on the design, one reader can connect to several antennas and switch between them to cover different areas.

The antenna influences where communication can happen. The reader controls the exchange. Software determines what the information means.

The RFID Reader Working Principle, Step by Step

The following sequence describes a typical passive RFID exchange. Active tags, discussed below, have their own transmitter and may communicate differently.

1. The reader sends energy and commands

The reader drives its antenna at a supported radio frequency. In systems that use reader commands, it places those commands onto the radio signal by changing characteristics of that signal—a process called modulation.

A command might start an inventory round, select a particular tag, or request a memory read. The reader and tag must use a compatible communication protocol, which defines commands, responses, and timing. Some simple identification tags instead return their identifier when energized, without a command sequence like that used in UHF inventory systems.

2. A passive tag harvests enough energy to operate

A passive tag has no battery. Its antenna captures energy from the reader’s field, and circuitry in the tag converts that energy into a usable electrical supply for the chip.

How the energy reaches the tag differs between common systems:

• LF and HF: A reader coil produces an alternating magnetic field that induces voltage in the tag’s coil. This is inductive coupling, similar in principle to a loosely coupled transformer.
• Passive UHF: A tag antenna, often a dipole-style structure, captures energy from an electromagnetic wave. The chip rectifies the received signal to obtain electrical power.

These describe typical arrangements; specialized UHF designs can also use near-field coupling. Coil-based induction is not a universal explanation for passive RFID.

A tag must receive sufficient power before it can operate. Simply being near a reader does not guarantee activation.

3. The tag modulates its response

A passive tag typically communicates without generating an independent radio carrier.

In common LF/HF implementations, the chip changes the electrical load on its coil. Through magnetic coupling, those changes produce detectable variations at the reader. This is called load modulation. Particular LF protocols can use other response arrangements, so the exact sequence depends on the system.

In typical passive UHF systems, the chip switches the electrical impedance connected to its antenna. That changes the antenna’s reflection characteristics, encoding data into a portion of the reader’s signal scattered back toward the reader. This is called backscatter modulation.

During a passive UHF reply, the reader normally continues supplying a carrier so the tag has both operating energy and a signal to modulate. The receiver must recover the weak response while managing interference from its own much stronger transmitted signal.

4. The reader decodes and checks the response

The receiver filters and processes the incoming signal, extracts the modulation, and converts it into digital data. The reader then checks the response according to the protocol, including any applicable error-detection fields.

A successful read might return an identifier, selected memory contents, or a status response. An error check helps detect corrupted communication; it does not prove that the tag is authentic or that its stored information is correct.

5. Software turns the read into an event

The reader passes results to a host through an interface such as USB, Ethernet, serial, or a wireless connection, depending on the device. Reports may include the tag ID, antenna port, time, and signal measurements.

For example, a warehouse application can look up a carton’s tag ID and associate it with an order. Middleware—software between the reader and business application—may remove repeated reads and combine observations with a sensor trigger or time window to report a checkpoint event.

The tag does not necessarily contain the product description, shipment history, or current inventory status. Those details often live in a database linked to its identifier.

Passive, Battery-Assisted Passive, and Active Tags

The tag’s power source and response method change the reader’s role.

A battery in a handheld reader is separate from this classification. A battery-powered handheld can read battery-free passive tags.

Active systems do not all follow the same interrogation sequence. Some tags transmit beacons without first receiving a reader command, while others respond to an initiating signal.

Understanding Frequency Bands and Compatibility

Frequency shapes the energy transfer and antenna design, but frequency alone does not establish compatibility.

These are common arrangements, not guaranteed distance specifications. LF usually serves close-range tasks. HF ranges from tap-style interactions to larger read zones in suitably designed systems. Passive UHF can support reads over several meters, but compact antennas, object materials, or deliberately restricted read zones can make its working distance much shorter.

Reader compatibility requires matching more than the band:

• Air-interface protocol: Reader and tag must understand the same commands and response format. Different HF protocols, for example, are not automatically interchangeable.
• Supported operations: Inventory, memory access, writing, and authentication require the relevant reader and tag capabilities.
• Regional configuration: UHF reader settings and antenna/tag tuning must suit the deployment region. Permitted channels and radiated power depend on local rules.
• Application integration: Host software must be able to receive and interpret the reader’s output.

NFC operates at HF, but an NFC-enabled phone is not a universal RFID reader. It cannot normally read passive UHF inventory labels without additional hardware, and its HF support depends on the device and software.

How RFID Readers Identify Multiple Tags

Bulk reading relies on anti-collision procedures that organize tag responses. “Reading many tags at once” usually means identifying them through many short exchanges during an inventory cycle.

In common passive UHF inventory procedures, tags choose response slots within a round. If one tag responds in a slot and its signal is strong enough, the reader can acknowledge it and continue the identification exchange. If several responses overlap, the reader may be unable to decode them, and those tags need another opportunity to reply.

The reader adjusts the number of available slots to suit the tag population. Too few slots cause more collisions; too many waste time on empty slots. Protocol state also helps manage which tags continue participating after identification.

Other RFID protocols use different selection or collision-resolution methods. Multi-tag reading is therefore a capability of the reader-and-tag protocol combination, not a universal feature of every RFID system.

Anti-collision cannot recover a tag that receives too little power or whose reply cannot reach the reader. A dense box of tagged items may require changes to antenna placement, tag placement, or reading time as well as protocol settings.

What Determines Read Range, Throughput, and Accuracy?

Read range requires a working link in both directions

A passive read succeeds only when enough energy reaches the tag and its response reaches the reader clearly enough to decode.

Several factors affect that exchange:

• Antenna design and orientation: Coil alignment matters in LF/HF. In UHF, tag orientation and antenna polarization affect energy transfer and reception. A circularly polarized reader antenna can help with varied tag orientations, but does not eliminate every orientation-related blind spot.
• Metal and liquids: Metal can detune antennas, shield tags, and reflect signals. Water-rich materials can absorb UHF energy and alter tag behavior. Purpose-designed on-metal tags or suitable spacing can help; LF and HF are not immune to metal either.
• Reflections and interference: Reflected signals can reinforce or cancel one another, creating uneven coverage. Nearby readers and other radio sources can also affect reception.
• Power and cable losses: Configured output, antenna gain, and cable losses influence the field, subject to applicable operating limits.

Increasing power can also capture tags outside the intended area. A useful read zone must reliably cover the intended items while limiting unwanted reads; its boundary will not be a perfectly sharp line.

Throughput depends on the task and time available

Counting identifiers generally takes less communication than reading several memory blocks, writing data, or performing authentication. Collisions, retries, antenna switching, and software processing also consume time.

For a conveyor, dwell time is how long a tag remains in a usable read zone. A reader that performs well with stationary tags may miss moving items if the exchange cannot finish before they leave that zone.

Repeated reports of one tag are not the same as identifying additional unique items. Evaluate completed item reads within the time allowed by the workflow.

Separate missed tags from unwanted reads

For a shipment checkpoint, measure both whether expected tags were detected and whether tags from neighboring goods were incorrectly assigned to that shipment.

If 98 of 100 expected items are detected, the capture rate is 98%. That figure alone says nothing about whether the system also included items from an adjacent pallet. An unwanted read may be a correctly decoded tag from the wrong area, rather than corrupted radio data.

Test representative objects, tag positions, speeds, and surrounding materials. Define success around the intended business event rather than a reader’s maximum advertised range or raw read count.

What a Successful Read Tells You

A successful read establishes that a compatible tag response was received at that moment. Further conclusions require more information.

Identification and authentication serve different purposes. Reading an identifier does not by itself prove that the credential or item is genuine. Authentication requires supported security mechanisms and correct key management. A frequency band or protocol name alone does not guarantee encryption or protection against copying. Protecting reader connections and access to backend records is also part of securing the system.

Detection provides an observation within a read zone. A read at a dock antenna suggests presence within its effective coverage. Signal strength changes with orientation, obstructions, and reflections, so it is not a dependable distance measurement on its own. Direction or location estimates require additional system design, such as multiple observation points, sensors, and appropriate processing.

Authorization is an application decision. An access reader may pass credential data to a controller, which checks permissions before unlocking a door. Similarly, inventory software must decide whether repeated observations represent arrival, departure, or continued presence.

Reader Deployment: Fixed, Handheld, and Embedded

Reader form factor changes how the system fits a workflow; it does not replace the underlying compatibility requirements.

These descriptions can overlap: a fixed reader may have an integrated antenna. An integrated-antenna reader is different from an embedded module, and neither label specifies read range or throughput by itself.

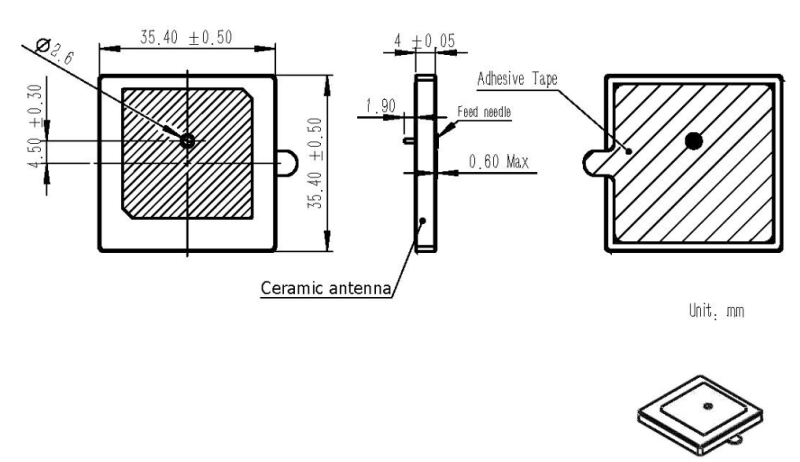

For equipment examples, see the fixed UHF reader and handheld UHF reader pages. Antenna examples include a compact UHF ceramic antenna, reader antennas for warehouse applications, and UHF antennas for logistics tracking. Their suitability depends on the complete reader, antenna, tag, and application combination.

Applying the Working Principle to Your System

Start with the event you need to detect: a card presented, an item counted, or a carton passing a checkpoint. Match the tag and reader protocol, choose an antenna arrangement that reaches the intended tags, and specify what software should do with each observation.

Then test the complete exchange on representative objects. Check activation and response reliability, unique-item capture, unwanted reads, and the time available for communication. If writing or authentication is required, test those operations separately from basic identification.
