Low frequency RFID technology has been in commercial and industrial use for decades, and despite the rapid growth of UHF and NFC systems, 125kHz low frequency (LF) RFID cards remain one of the most reliable and widely deployed identification solutions in the world. Their stability, simplicity, and strong resistance to environmental interference make them especially popular in access control, time attendance, identification, and legacy system upgrades.

This article provides a complete introduction to 125kHz LF RFID cards, explaining how they work, their technical specifications, available chip types, customization options, applications, and the practical problems they solve for B2B users.

What Is a 125kHz Low Frequency RFID Card?

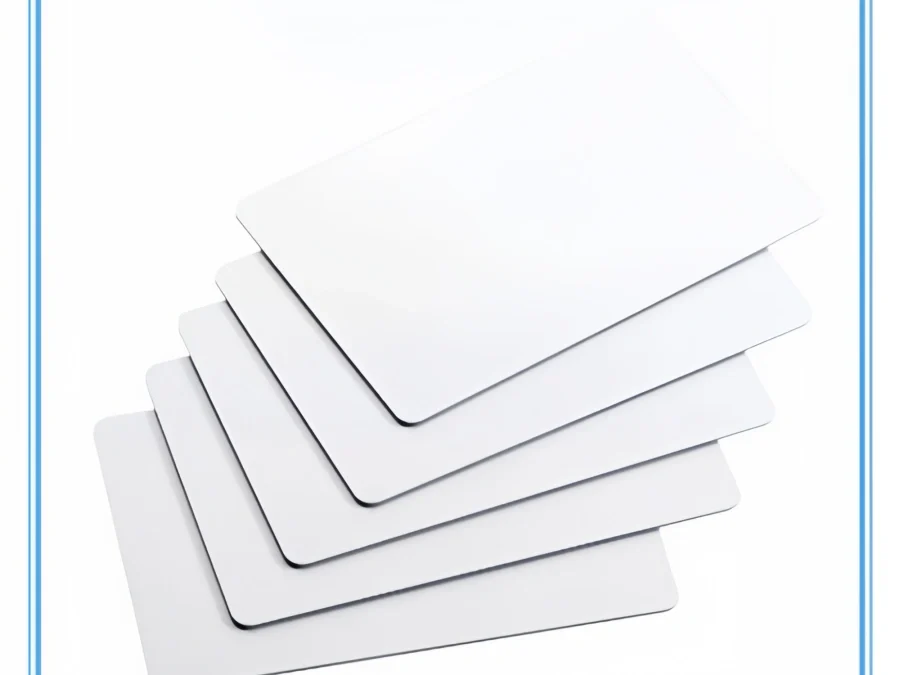

A 125kHz RFID card is a passive contactless identification card that operates in the low frequency (LF) band at 125 kilohertz. The card consists of three basic elements:

  • An RFID chip storing a unique ID or data

  • A copper coil antenna embedded inside the card

  • A card body, typically made of PVC, ABS, or PET

Unlike high-frequency or UHF RFID cards, 125kHz cards do not rely on high data rates or long read distances. Instead, they focus on stable, short-range communication with excellent tolerance to metal, liquids, dust, and electromagnetic interference.

Because of these characteristics, 125kHz RFID cards are still extensively used in door access systems, employee badges, parking control, elevators, and industrial environments.

How 125kHz RFID Technology Works

125kHz RFID cards are passive devices, meaning they do not contain a battery. When the card enters the electromagnetic field generated by a compatible RFID reader, the antenna inside the card harvests energy from the field and powers the chip momentarily.

The chip then transmits its stored identification data back to the reader through load modulation. This process is simple, fast, and extremely reliable.

Key characteristics of LF RFID communication include:

  • Short reading distance (typically 2–10 cm)

  • Low sensitivity to interference

  • Consistent performance across harsh environments

This is why LF RFID is often described as “old technology” that refuses to die—because it simply works.

Key Technical Specifications of 125kHz RFID Cards

Operating Frequency

  • Frequency: 125kHz (Low Frequency)

This frequency band is globally accepted and license-free, making it ideal for international deployments without regulatory complications.

Card Materials

125kHz RFID cards can be manufactured using several durable materials:

  • PVC – Most common, cost-effective, suitable for standard indoor use

  • ABS – Higher impact resistance for industrial or outdoor environments

  • PET – Improved heat resistance and environmental stability

Material selection depends on usage conditions, card lifespan expectations, and branding requirements.

Card Size and Thickness

  • Standard size: 85.5 × 54 mm (ISO credit card size)

  • Thickness: 0.88 mm (standard), customized thickness available

  • Custom formats: Irregular shapes and special sizes supported

  • Snap-off key fob option: Cards can be produced with detachable key fob sections

This flexibility allows seamless integration into existing badge holders, wallets, or keychains.

Printing and Surface Finishing Options

One of the strengths of 125kHz RFID cards is their high degree of customization, making them suitable for corporate branding, visual identification, and multi-function systems.

Printing Methods

  • Silk-screen printing

  • CMYK offset printing

  • Laser printing

These options allow for logos, photos, serial numbers, and variable data printing.

Surface Finishing and Lamination

  • Glossy finish

  • Matte finish

  • Frosted finish

  • Protection film on both sides

  • UV coating for extended durability

These treatments protect the printed surface from wear, fading, and daily handling.

Personalization and Special Craft Options

125kHz RFID cards can be enhanced with a wide range of functional and security features:

  • Signature panel

  • Scratch-off panel

  • Thermal printing (black or silver)

  • Laser engraving of numbers or text

  • Metallic printing (gold or silver background)

  • Embossed numbers or letters

  • Barcodes: Code 13, Code 128, Code 39, QR code

  • Magnetic stripe: LoCo or HiCo

  • Reprintable surface

This makes the card suitable not only for RFID identification but also for visual verification and hybrid systems.

Available 125kHz RFID Chip Types

The performance and functionality of a 125kHz RFID card depend heavily on the embedded chip. A wide range of mature, well-supported LF chips are available.

Common 125kHz Chip Options

  • EM4100 / TK4100
    Read-only UID chips, widely used in basic access control systems

  • EM4205
    Compatible with EM4100 format, improved stability

  • EM4305 / T5577
    Rewritable chips, support multiple protocols and cloning (where legally permitted)

  • EM4450
    Extended memory and configuration options

  • Hitag 1 / Hitag 2
    NXP chips with enhanced security features

  • HTS256 / HTS2048
    Higher memory capacity for specific industrial applications

  • Hitag UR064
    Advanced LF chip used in automotive and secure identification systems

Custom chip solutions are also available for specialized projects.

Typical Read Distance and Performance

125kHz RFID cards typically offer a read range of 2–10 cm, depending on:

  • Reader power and antenna design

  • Chip sensitivity

  • Environmental conditions

While this read distance is short compared to UHF or NFC, it is often an advantage. Short-range reading:

  • Reduces accidental reads

  • Improves security

  • Ensures intentional user interaction

Main Applications of 125kHz RFID Cards

Access Control Systems

This is the most common application. 125kHz RFID cards are widely used in:

  • Office buildings

  • Residential communities

  • Factories

  • Hospitals

  • Schools

Their reliability and low cost make them ideal for large-scale deployments.

Time and Attendance Management

In HR systems, 125kHz cards are used for:

  • Employee check-in/check-out

  • Shift tracking

  • Payroll integration

Their consistent read performance reduces false reads and system errors.

Parking and Vehicle Access

LF RFID cards are often used in:

  • Parking garages

  • Gated communities

  • Company vehicle access systems

They perform well in environments with metal structures and electrical noise.

Elevator and Building Control

Many elevator control systems still rely on 125kHz cards due to their stability and compatibility with older infrastructure.

Membership and Identification Cards

Gyms, clubs, libraries, and institutions use LF RFID cards for:

  • Member identification

  • Service access

  • Simple authentication

Why Choose 125kHz RFID Instead of HF or UHF?

Despite newer technologies, 125kHz RFID remains relevant because it solves specific problems better than alternatives.

Advantages of 125kHz RFID Cards

  • Excellent resistance to metal and liquid interference

  • Stable performance in harsh environments

  • Simple system architecture

  • Low system cost

  • Long product lifecycle

  • Wide compatibility with legacy systems

Limitations to Consider

  • Short read distance

  • Low data transfer speed

  • Limited memory compared to HF and UHF chips

For identification-focused applications, these limitations are often irrelevant.

Security Considerations

Traditional 125kHz RFID cards primarily rely on unique ID identification, which offers basic security. For higher-security applications, options include:

  • Rewritable chips with password protection

  • Hitag series chips with authentication

  • Combining RFID with visual or biometric verification

Many organizations use LF RFID as part of a multi-layer security strategy.

Manufacturing and Quality Control

High-quality 125kHz RFID cards are produced under strict processes including:

  • Antenna impedance matching

  • Chip bonding and encapsulation

  • Lamination pressure and temperature control

  • Electrical testing and UID verification

  • Surface inspection and durability testing

Consistent quality is critical for large-scale B2B deployments.

Choosing the Right 125kHz RFID Card Supplier

When sourcing RFID cards, B2B buyers should consider:

  • Chip authenticity and traceability

  • Customization capability

  • Production capacity and lead time

  • Quality control standards

  • Technical support and compatibility guidance

A reliable supplier helps ensure long-term system stability and scalability.

Conclusion: A Proven Technology That Still Delivers Value

The 125kHz low frequency RFID card remains a cornerstone of access control and identification systems worldwide. Its durability, environmental tolerance, and simplicity make it a practical choice for organizations that value reliability over complexity.

While newer RFID technologies excel in data-rich or long-range scenarios, 125kHz RFID continues to outperform in controlled, security-focused applications. For many B2B users, it is not a legacy solution—it is the right tool for the job.

Quiet, dependable, and cost-effective, the 125kHz RFID card proves that mature technology, when well-designed, can remain relevant for decades.
