USB HF RFID Reader
DO RFID Reader manufacturer produced many types of USB hf RFID reader. rfid reader with USB interface is very cheap for RFID desktop applications. usb hf rfid reader writer with virtual keyboard input.Features
- Detacheable mirco USB cable reader connector
- Read/Write speed of up to 424 kbps
- CCID Compliance
- Support for ISO 15693,ISO 14443 Part 4 Type A and B cards
Description
DO RFID Reader manufacturer produced many types of USB hf RFID reader. RFID reader with USB interface is very cheap for RFID desktop applications. USB HF RFID reader writer with virtual keyboard input.

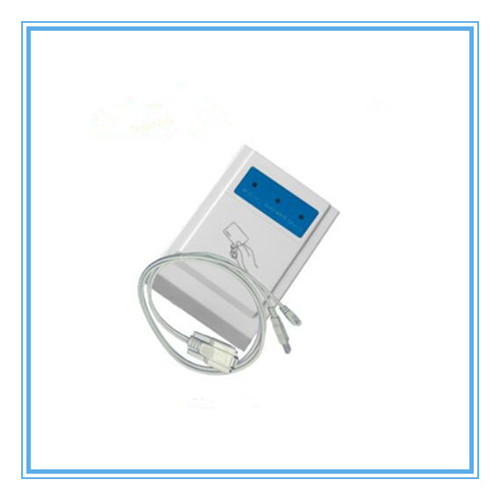

This plug and play USB HF RFID reader features a compact size and low power consumption and is suitable for many applications such as access control, ticketing, time and attendance, parking control and POS operations. It is compliant with RS232 and USB interfaces. TCP/IP interface is also optional.
Buy the USB hf RFID reader avoid manual input mistake. USB interface like a keyboard to input card number to PC system automatically, or input RFID card number by hand when issuing a card to access control system but only present the card to this reader.
RFID reader USB keyboard save your time with more convenient and efficient Free of installing driver, compatible with Windows7/98/2000/XP
Primary Applications:
- Access controls
- Admission control
- Master and user authentication control
- Time and attendance
- Pre-payment
- Ticketing
- Prepaid parking / meal coupon
- Checking the balance & re-loading an e-purse
- Home security & Anti-crime application
- Multi-application: Tracking, Retail, Customer, Loyalty, Leisure, Gambling
Specification
Item | Parameters |
---|---|
Model | DO-09A USB HF RFID reader |
Frequency | 13.56Mhz or 125Khz |
Support cards | EM4200/Mifare 1k/DESfire/ISO15693 I Code SLI/TYPE A B C |
Output format | Digital Decimal Card Number Hex Card |
(Allow user to customize the output format) | |
Size | 140mm×100mm×25mm |
Colour | Champagne or Black Color |
Interface | USB,Wiegand 26/34,RS485 |
Power Supply | DC 5V-16V |
Operating Distance | 0mm-150mm(related to the card or the environment) |
Service Temperature | -10℃ ~ +70℃ |
Store Temperature | -20℃ ~ +80℃ |
Working humidity | <90% |
Read time | <200ms |
Read interval | <0.5S |
Weight | About 140G |
Cable length | 1400mm |
Material of reader | ABS |
Operating System | Win XP\Win CE\Win 7\Win 10\LIUNX\Vista\Android |
Indicators | Three Color LEDs (Red & Green) and Buzzer |
(“Red” means standby, “Green” means reader success) |
