Product Overview

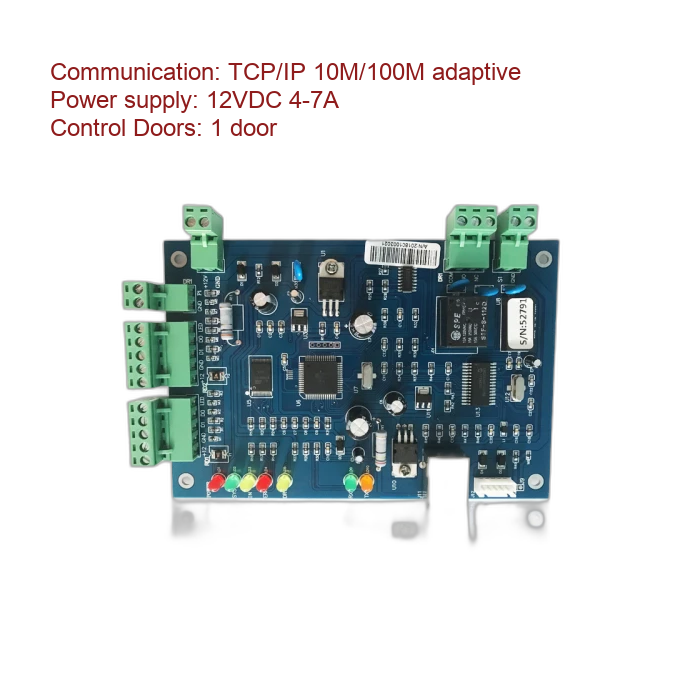

The DO-T01 TCP/IP Single Door Access Control Panel is a network-based controller designed for secure, centralized access management in commercial and industrial facilities. This panel supports one door with entry and exit control via card swipe, or entry by card with exit by push button. Built for system integrators, security contractors, and facility managers, the DO-T01 enables remote door management, real-time monitoring, and integration with broader building automation systems. As a reliable access control solution from an experienced manufacturer, it supports bulk deployment for multi-site projects with consistent performance and stable supply.
Product Advantages
For B2B buyers such as distributors, wholesalers, and project integrators, the DO-T01 delivers practical business value through its TCP/IP network architecture, which simplifies installation and reduces cabling costs compared to traditional serial bus controllers. The panel supports up to 20,000 users and 100,000 event buffers offline, ensuring uninterrupted operation even during network outages. System integrators benefit from Wiegand 26 compatibility with all major reader protocols, including HID, EM, and Mifare, enabling seamless integration with existing access control infrastructure. The controller also supports interlock, anti-passback, multi-card open, and first card unlock functions, making it suitable for high-security environments such as data centers, laboratories, and restricted office zones.
Key Features
- TCP/IP 10M/100M adaptive communication for network-based deployment
- Supports 1 door with entry and exit card reading or entry card with exit button
- Wiegand 26 input format compatible with HID, EM, Mifare, and other standard readers
- 20,000 user capacity and 100,000 event buffer for offline data storage
- Door open time adjustable from 1 to 600 seconds
- Alarm functions: long door open, illegal break-in, intimidate alarm
- Fire alarm linkage via software interface or optional expansion board (model DO-EA05) for hardware alarm and security alarm
- Remote open door, urgency locking, first card unlocking, and multi-card open
- Interlock and anti-passback support (with appropriate model variants)
- Electronic map integration for visual monitoring
- Keypad support for card + password or super password modes
- Power interruption protection with high-speed memory, records never lose
- Operating temperature -40°C to 70°C, humidity 10-90% RH non-condensing
- Optional wide voltage backup power supply (model DO-WG04) with AC110-240V input and DC9V-16V/5A output, including relay for lock, access control, and exit button, plus time relay 0-15 seconds
- Backup power supply case designed to accommodate both battery (12V/7AH, model DO-400) and control board
Technical Specifications
| Parameter | Single Door Control Panel (DO-T01) | Multi Door (2) Control Panel (DO-002) | Multi Door (4) Control Panel (DO-004) |
|---|---|---|---|
| Communication | TCP/IP 10M/100M adaptive | TCP/IP 10M/100M adaptive | TCP/IP 10M/100M adaptive |
| Description | Control 1 door, get in and out by card, or in by card and out by button | Control 2 doors, in and out by card, or in by card and out by button | Control 4 doors, in by card, out by button |
| PCB Board Size | 160mm x 106mm | 160mm x 106mm | 218mm x 106mm |
| Case Size | 273mm x 228mm x 65mm | ||
| Power Supply | 12VDC 4-7A | ||
| Power Consumption (Board) | Less than 100mA | ||
| Reader Input Format | Wiegand 26 (compatible with Motorola, HID, EM, Mifare one, etc.) | ||
| Quantity of Readers | 2 pcs | 4 pcs | 4 pcs |
| Doors Controlled | 1 door | 2 doors | 4 doors |
| Door Open Time Setting | 1-600 seconds (adjustable) | ||
| Max Controllers | No limit | ||
| Operating Temperature | -40°C to 70°C | ||
| Operating Humidity | 10-90% RH, No Condensation | ||
| User Capacity | 20,000 Users | ||
| Event Buffer (Offline) | 100,000 event buffers | ||
| Power Interruption Protection | High Speed Memory, records never lose | ||
| Max Distance Reader to Controller | 100m (recommended 80m) | ||
| Max Distance Between Controllers | TCP/IP: depends on network coverage | ||
| Alarm: Long Door Open, Illegal Break-in, Intimidate | Yes | ||
| Fire Alarm Linkage | Software interface alarm and computer speaker (standard); hardware alarm with expansion board DO-EA05; security alarm with strengthened expansion board | ||
| Compulsive Open/Close Door | Yes | ||
| Remote Open Door | Yes | ||
| Interlock | No | Yes | Yes |
| Anti Pass-back and Tail | Yes | ||
| Multi-card Open Door | Yes | ||
| Open Door at Specified Time | Yes | ||
| Electronic Map | Yes | ||
| Urgency Locking | Yes | ||
| First Card Unlocking | Yes | ||
| Internal/External Validation Unlock | Yes | ||
| Keypad (Card+Password, Super Password) | Yes | ||
Backup Power Supply (Model DO-WG04)
| Input Voltage | AC110-240V / 50Hz-60Hz |
| Output Voltage | DC9V-16V / 5A |
| Output Contacts | Lock, Access Control, Exit Button |
| Material | Shell: Iron, painted |
| Time Relay | 0-15 seconds |
| Compatibility | DO Series Access Control Board |
| Special Design | Box accommodates backup power supply and control board |
| Optional Accessories | DO-400 Storage Battery, 12V/7AH |
| Dimensions | 371 x 266 x 66 mm |
| Unit Weight | 2.04 kg |
| Standard Package | 10 pcs |
| Carton Weight | 20.5 kg |
| Carton Size | 58 x 43 x 40 cm |
Industrial Applications
The DO-T01 is designed for commercial and industrial environments where reliable, centralized access control is required. Typical use cases include office buildings, manufacturing facilities, warehouses, logistics centers, data centers, research labs, hospitals, educational campuses, and government facilities. System integrators deploy this panel for multi-door projects where network-based management, event logging, and remote monitoring are essential. The controller supports integration with fire alarm systems, electronic map visualization, and interlock functions, making it suitable for high-security zones and compliance-driven environments. For property managers and security contractors, the DO-T01 reduces on-site maintenance through remote diagnostics and firmware updates via TCP/IP.
OEM / ODM Manufacturing Support
As an experienced manufacturer, do rfid reader manufacturer offers OEM and ODM services for the DO-T01 access control panel. Buyers can request custom silk-screen logos, packaging, and firmware adjustments for volume orders. Minimum order quantities apply for OEM customization, and lead times are coordinated based on project schedules. OEM cooperation is supported for distributors, system integrators, and security brands seeking to rebrand the controller for their product lines. All customization requests are reviewed for technical feasibility to ensure batch consistency and compatibility with existing systems.
Factory Production Advantages
With over 20 years of manufacturing experience in RFID and access control products, do rfid reader manufacturer operates a stable production facility with dedicated assembly lines for controller boards, power supplies, and associated accessories. Each unit undergoes in-house quality inspection before packaging, including functional testing of communication, relay outputs, and reader input. The factory supports bulk orders with consistent lead times: 1-5 days for sample orders and 7-30 days for bulk production depending on quantity and customization requirements. Production capacity is scaled to support long-term wholesale cooperation and large-scale project deployments.
Bulk Supply & Project Deployment Support
For wholesalers and project contractors, do rfid reader manufacturer provides bulk supply with batch consistency across all units. The DO-T01 is available in standard packaging with PCB board, software, manual, certificate, and carton. For large-scale deployments, technical documentation and configuration support are provided to streamline installation. The factory can coordinate shipping via express (DHL, FedEx, TNT, UPS, EMS), sea freight, or air freight, with options for FOB, CIF, CFR, and EXW trade terms. Export documentation such as CO, FTA, Form F, and Form E can be supplied to facilitate customs clearance. Buyers are encouraged to request a quote or contact for specifications and pricing based on project requirements.
Frequently Asked Questions
Q: How do I place a bulk order for the DO-T01?
A: Send your requirements including quantity, customization needs, and delivery timeline. A formal quotation and production schedule will be provided.
Q: What are the payment terms for wholesale orders?
A: Payment options include T/T, PayPal, and Western Union. Trade Assurance is supported for qualifying orders.
Q: Can the DO-T01 be integrated with existing HID or Mifare readers?
A: Yes, the panel supports Wiegand 26 protocol and is compatible with HID, EM, Mifare, and other standard readers.
Q: What is the lead time for OEM customization?
A: Sample orders typically ship within 1-5 days. Bulk production with OEM customization requires 7-30 days depending on order volume.
Q: Is the backup power supply included with the panel?
A: The DO-WG04 backup power supply is optional and sold separately. It is designed to accommodate both the control board and a 12V/7AH battery.
Q: What warranty applies to the DO-T01 controller?
A: The product carries a 2-3 year warranty against manufacturing defects, excluding damage caused by improper use or external factors.
For technical specifications, OEM customization inquiries, or bulk pricing, please contact: info@dorfidreader.com
