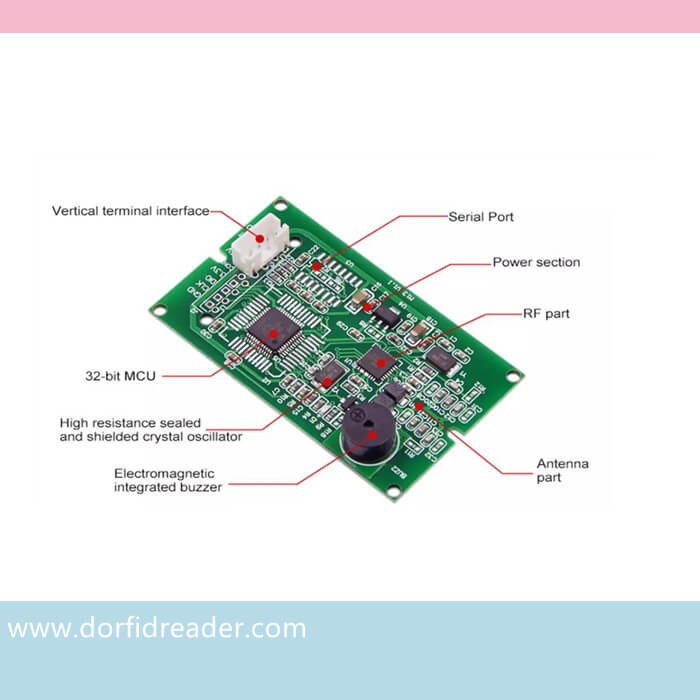

RFID 13.56mhz Mifare reader and writer module
This small RFID 13.56mhz Mifare reader and writer module feature fast data transfer and high data integrity. It reads/writes ISO 14443A MIFARE® Class and MIFARE® PRO standard cards. Users can implement their own applications and define their own security keys. It is well-suited for the applications of 13.56 MHz technology for handy terminals or custom-built system integrators.
Specification
| Item | Parameters |
|---|---|
| Model | RFID 13.56mhz Mifare reader and writer module |
| Frequency | 13.56Mhz |
| Support cards | Mifare 1k card |

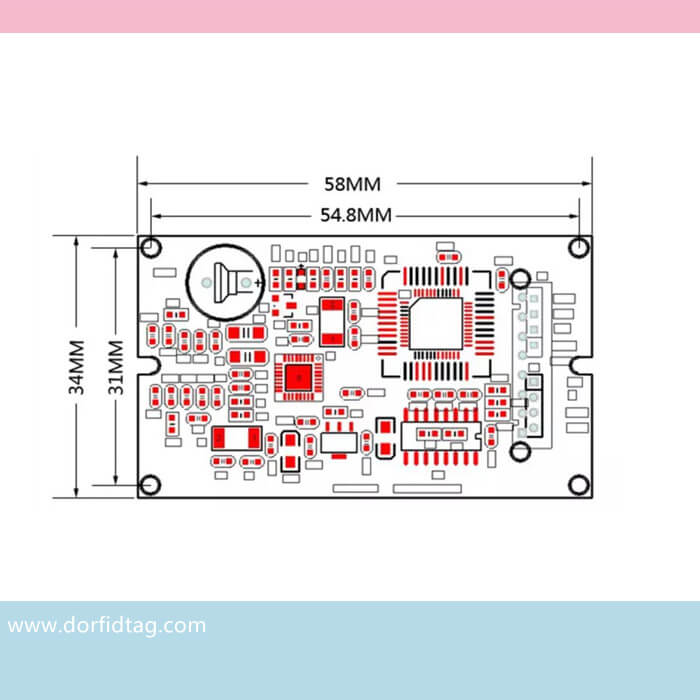

| Size | 58mmx34.3mmx7mm (length x width x height) |
| Colour | Champagne or Black Color |
| Interface | USB, UART TTL, RS232 |
| Power Supply | DC 5V |
| Operating Distance | 0mm-50mm(related to the card or the environment) |
| Service Temperature | -10℃ ~ +70℃ |
| Store Temperature | -20℃ ~ +80℃ |
| Working humidity | <90% |
| Read time | <200ms |
| Read interval | ＜0.5S |
| Baud Rate | 19200,N,8,1 |
| Housing | NO |
| Operating System | Win XP\Win CE\Win 7\Win 10\LIUNX\Vista\Android |
