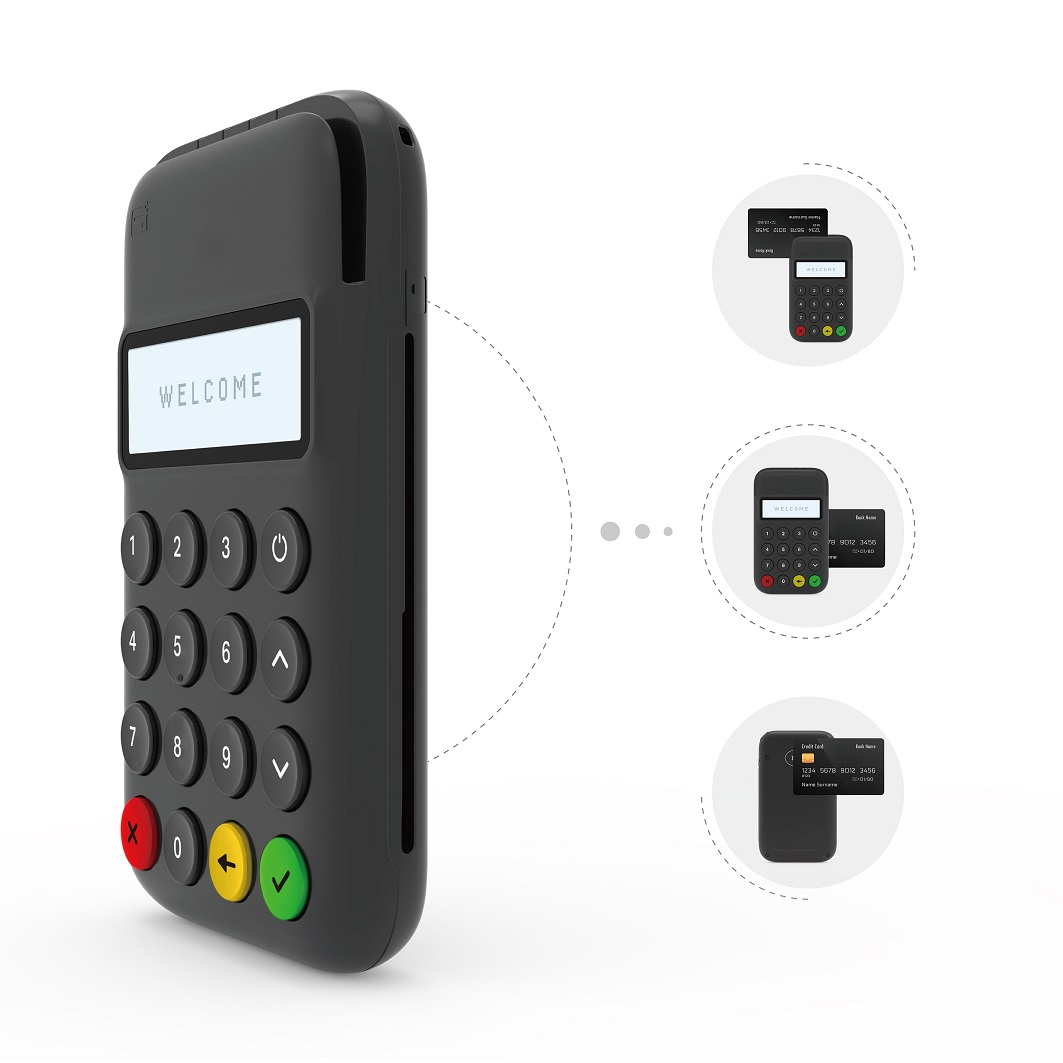

Android Bluetooth emv credit Card Reader MPOS pos machine
Android Bluetooth emv credit Card Reader MPOS pos machine
Newly designed streamlined appearance, make seamless payment where-ever with smart devices. Can be easily integrated with APPs running on iOS, Android and windows.
| Physical characteristics: |
| Dimensions (L x Wx H): 99mm x 59.03mm x 16.1mm |
| Weight: 80g |
| Display: Single color display (128 x 40) |
| Keypad: 10 numeric keys+5 function keys+ 1 power on/off key |
| Standard battery: Lithium polymer rechargeable battery 250mAh, 3.7V |
| Buzzer: yes |
| LEDs: multicolor supported |
Performance characteristics:
CPU: 32-bit ARM CPU, 192 MHz
Memory: 256KB SRAM + 512KB Flash | External Storage: 1MB Flash
Transaction and payment:
Magnetic card reader: Dual track (track 1 & 2,)
IC card: EMV/PBOC Chip Card Reader, ISO 7816 Compliant Class A, B, C
Contactless payment: EMV contactless, ISO 14443A/B
Key management: DUKPT, Fixed Key, MK/SK
Encryption algorithm: DES, 3DES, RSA, AES, SHA-256
Data connectivity:
Bluetooth® v3.0, Bluetooth® BLE and USB
Environment characteristics:
Storage temperature ( -10℃ to + 55℃)
Operating temperature ( -5℃ to + 45℃)
Humidity (5% to 95% non-condensing)
Certifications:
PCI-PTS 5x with SRED
EMV L1&L2, EMV contactless L1
Visa PayWave, MasterCard PayPass, PURE
Discover D-PAS, Amex Expresspay, Rupay qSPARC
PBOC 3.0 L1&L2, UnionPay QuickPass
PCI PIN Security, MasterCard TQM
Bluetooth BQB, FCC, CE, RoHS
Other:
SDK and API Android 2.1 or above,iOS 6.0 or above,Windows phone 8,MS Windows
