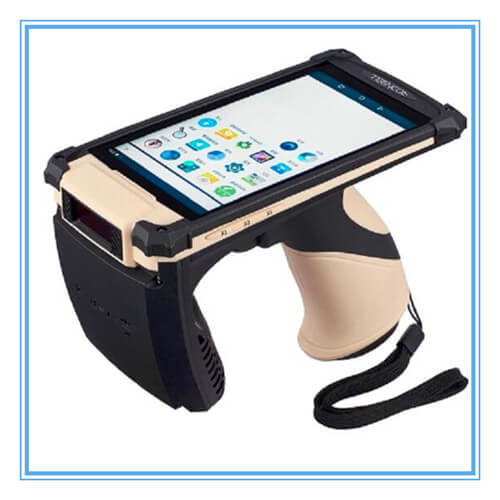

This RFID handheld reader is passive UHF long range data collection terminal.Over-molding and ergonomic hardware design can satisfy most of the tough environment from different fields.

FEATURES:

  • Truly provides long distance, multiple tags reader.
  • High performance Handheld RFID UHF reader.
  • Excellent Mechanical Protection.
  • Outstanding Design.
  • Ultra Long Operating Time.

Request A Quote

This RFID handheld reader is passive UHF long range data collection terminal.Over-molding and ergonomic hardware design can satisfy most of the tough environment from different fields.

Every detail has been well refined.The appearance is compact, elegant and balanced, which makes the product eye -catching and impressive.

The UHF long range RFID handheld reader writer with Impinj Indy R2000 chip, offers the best performance and excellent multi-tag identification ability in the industry.

Excellent Mechanical Protection for any harsh environment, The safety drop height is 2m / 656ft., IP64 protection grade can resist dusts and splashes effectively

Top Class Materials of CNC aluminum, nylon(Bayer) and 1.1mm thickness tempered glass offer excellent strength + heat dissipation + electromagnetic shielding. The soft material around the handle offers comfort.Industrial and military grade components ensure stability and endurance in harsh environments

Pistol style hotswapping battery system makes backup battery more convenient to be restored, so that the operating time is unlimited. A standard product package has two 6,OOOmAh batteries included.Android 6.0 intergrated, optimized version is continuously updated.

RFID handheld reader writer with high performance and muital communication wifi, bluetooth,GPS,USB ect,Heavy duty applications such as massive data collection, 3D real-time display can be operated smoothly.

This reader can be used to different applications, such as warehouse management, clothes management, library management and animals management,asset tracking etc.


USED FOR

  • warehouse management
  • Track inventory in the warehouse
  • Clothes management
  • Library management
  • animals management
  • Retail
  • Manufacturing
  • asset tracking
Performance parameters
Working Frequency 902~928 MHz or 865~868MHz
Protocol ISO18000-6C(EPC C1 GEN2)
Operating System Android 6.0
RFID hardware Impinj R2000
Performance Parameters
CPU Quad-core Cortex-A17/1.8GHz
GPU ARM Mali-T764/ High performance3D engine
Chip Impinj R2000
RAM 2G/4G LPDDR3
Software & SDK DEMO and C#, VC , Java
Storage space 32G/64GEMMC 5.0(customized)
LCD 5.0 Inches /1280°720/ IPS /180 view angle
Touch Screen a1.1mm thickness tempered glass / lO-dot touch / Can be operated with glove
Hotswapping Battery One-way relay output, One-way I/O input
PSAM PSAM02 / TI TCA5013 (Optional)
Bluetooth 61uetooth 4.0
WIFI IEEE 802.11 b/g/n
3G Huawei MU609/ Vehicle grade (Optional)
4G uawei ME 909s /Vehicle grade (Optional)
Physical Parameters
Shell material CNCaluminum + nylon(Bayer)
Item size Profile 160x82x129mm
Grip 111*38*47mm
Net weight 640g( Include battery / Standard version)
Working temperature -20℃ to 60℃
Storage temperature -40℃ to 70℃
Humidity 5%RH to 95%RH(non-condensing)
Protection Grade IP64
Safety Drop Height 2m /6.56ft
What RFID handheld reader can do ?
