CP-Z 2L embedded RFID reader
Compact CP-Z 2L embedded RFID reader is designed for use in the network and standalone access control systems. CP-Z 2L embedded reader supports EM Marine 125KHz keys and connects to the controllers via iButton (1-Wire) or Wiegand-26 protocol.
CP-Z 2L embedded reader is made of mechanically durable and fire-resistant material (polyamide) and repeats the shape of the iButton contractors for DS1990/DS1996 contact keys. CP-Z 2L embedded smallest RFID reader is easy to replace the traditional iButton contractors for contact keys without any design changes or mounting difficulties.
CP-Z 2L embedded smallest RFID reader is used in ACS (Access Control Systems) to transmit the code acquired from an EM-Marine standard token, via iButton or Wiegand-26 protocols. CP-Z 2L embedded smallest reader casing is made from sturdy, fireproof material and shaped similarly to contact pads for DALLAS keys. This allows to use CP-Z 2L mbedded readers in ACS or as standalone without design changes or mounting difficulties.
Specification
| Item | Parameters |
|---|---|
| Model | CP-Z 2L embedded RFID reader |
| Frequency | 125khz |
| Support cards | EM-Marine or DS1990/DS1996 ibuttons |

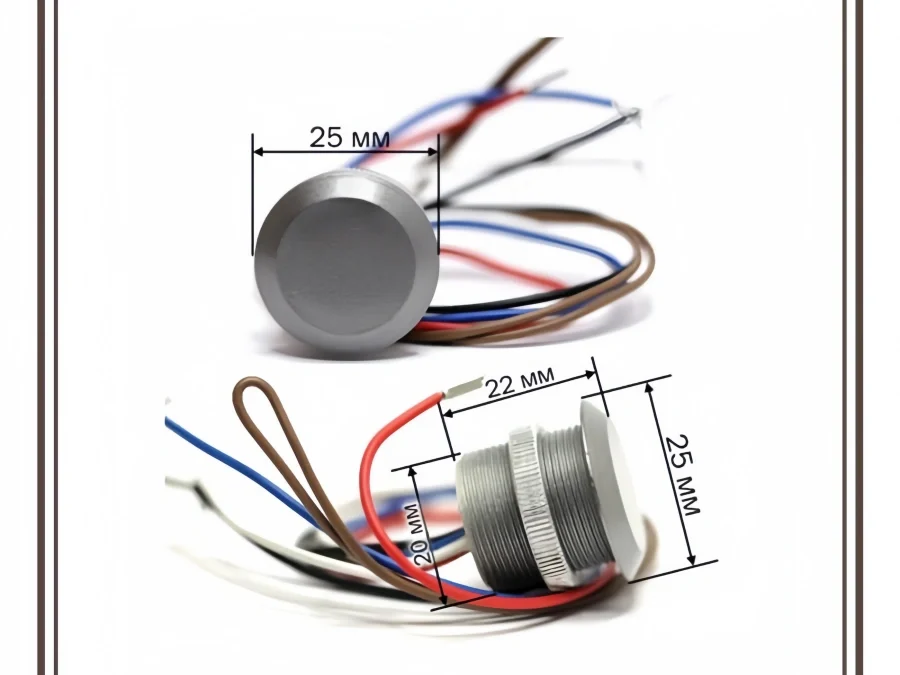

| Size | D26 x 22mm |
| Colour | Black or White (Optional) |
| Interface | WG26/Ibuttons |
| Operating Distance | 2mm-60mm(related to the card or the environment) |
| Service Temperature | -10℃ ~ +70℃ |
| Store Temperature | -20℃ ~ +80℃ |
| Working humidity | <90% |
| Read time | <200ms |
| Read interval | ＜0.5S |
| Keypadt | NO |
| Anti-vandal case | Yes |
| Material of reader | Polyamide |
| Waterproof and dustproof case | YES |
| External control of LEDs and buzzer | NO |
| iButton (1-Wire) maximum line length (m) | 15 |
| Voltage | 8-18DC |
| Wiegand maximum line length (m) | 100 |
| Current consumption (mA) | 35 |
| Visual indication | 1 x Red LED |
| Backlight | Red LED continuous lighting (optional) |
The CP-Z 2L embedded RFID reader is an ultra-compact RFID reading module designed for seamless integration into space-limited devices. Built with a highly integrated RF chipset, it delivers stable and fast tag identification while maintaining extremely low power consumption. Despite its small footprint, the CP-Z 2L supports reliable RFID performance and can be embedded into terminals, kiosks, cabinets, and smart equipment without affecting overall design aesthetics. Its embedded structure makes it ideal for OEM projects where size, stability, and long-term operation matter more than flashy housings.
From a practical standpoint, this reader is made for continuous, unattended operation. It offers strong anti-interference capability, consistent reading accuracy, and easy system integration through standard communication interfaces. In short, it’s the kind of reader that quietly does its job—no drama, no wasted space.
Typical Applications
The CP-Z 2L embedded RFID reader is widely used in smart cabinets, vending machines, access control terminals, self-service kiosks, asset management systems, and industrial automation equipment. It is also well suited for IoT devices, where compact size and reliable RFID identification are essential. In logistics and retail environments, it enables item identification and tracking at the device level, while in smart healthcare or laboratory settings, it supports controlled access and material management.
Small in size, serious in function—the CP-Z 2L is designed for modern embedded RFID applications where every millimeter counts.
